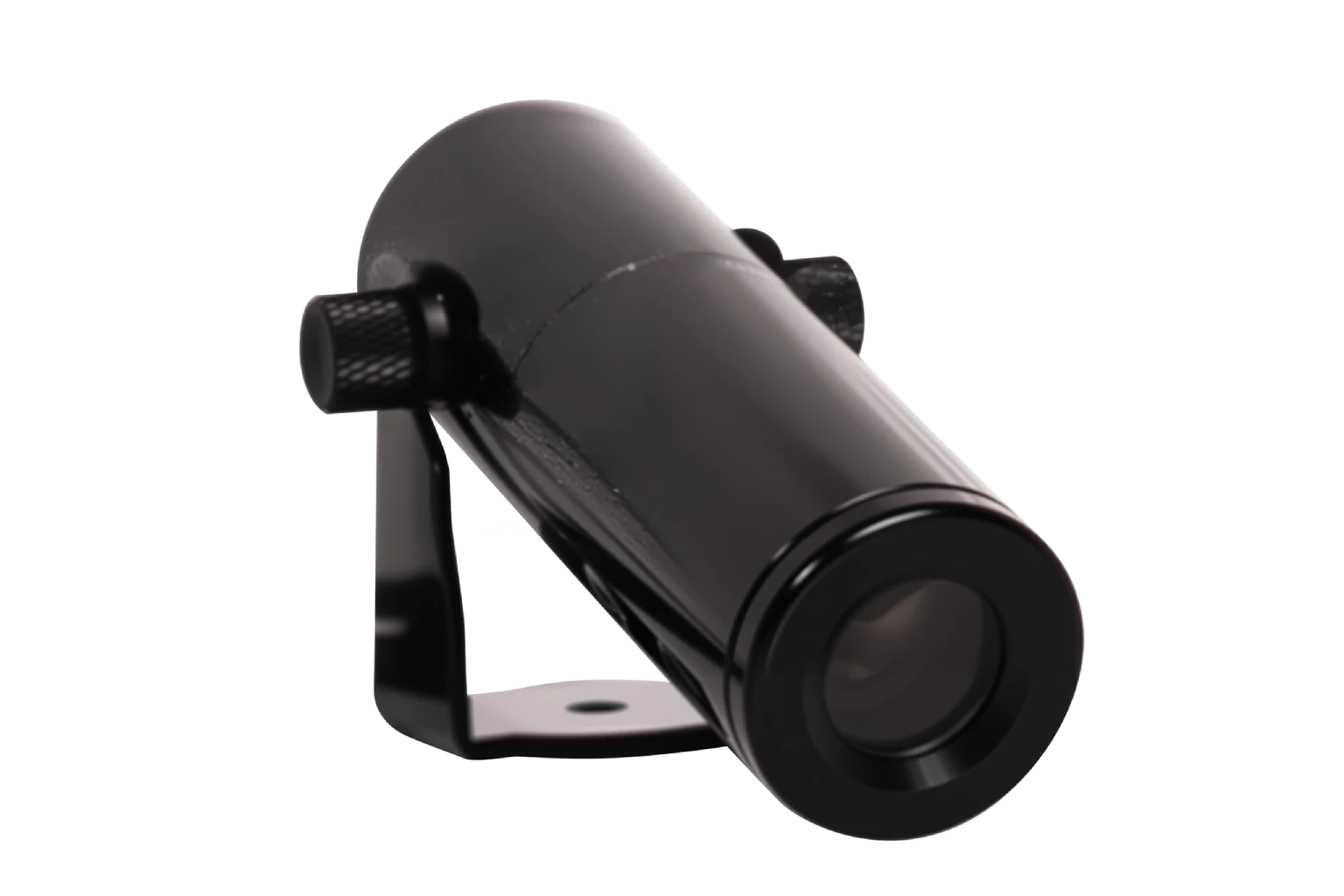

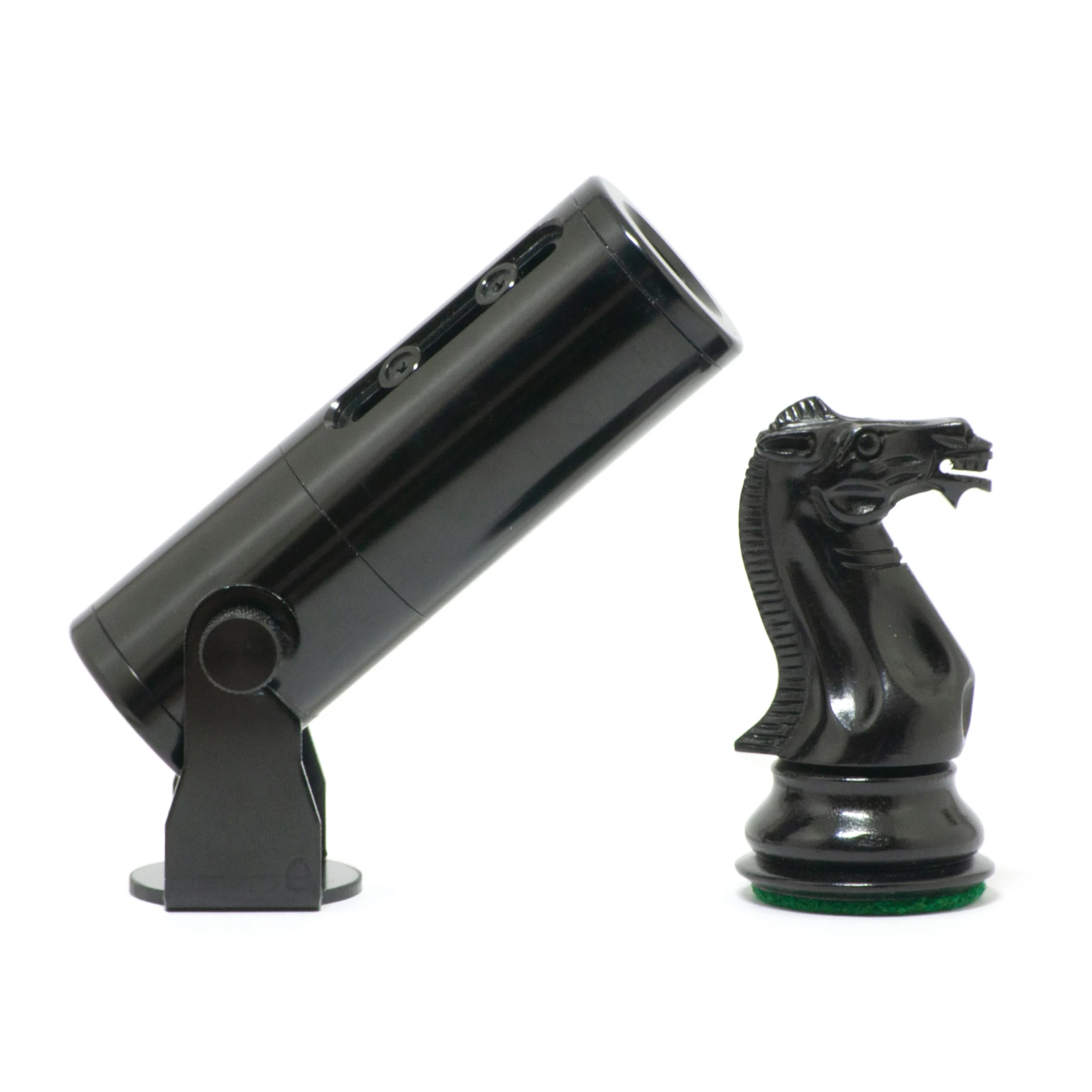

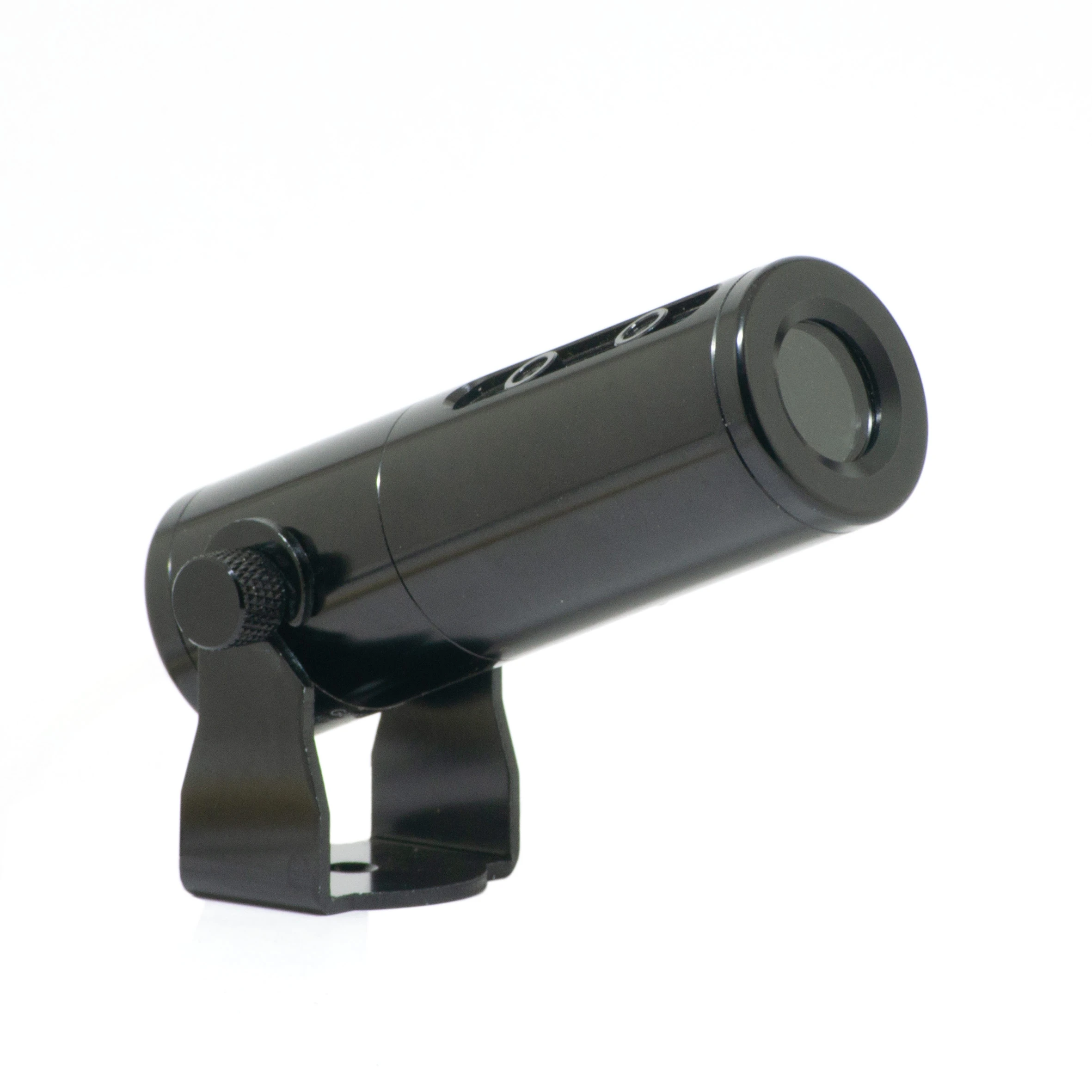

The Gantom iQ is the world’s smallest gobo projector with zoom and focus for professional lighting applications. Using LED technology and special optics, the Gantom iQ can render bright and sharp images from a variety of gobo materials including metal, glass, and even film. This fixture opens up a vast new dimension of creative lighting possibilities by allowing images, patterns, and signage to be projected in ways that were impossible with traditional gobo projectors.

FEATURES

  • Smallest gobo projector with zoom and focus on the market
  • Zoom adjustable with front sliding lens: 25-40 degrees
  • Focus adjustable with rear sliding lens
  • Supports all standard gobo materials including metal, glass, and film
  • 5 stage optics render razor sharp images and patterns
  • Low voltage and consumes less than 3W

APPLICATIONS

  • Themed entertainment (dark rides, Halloween attractions, bars, nightclubs, casinos)
  • Restaurants
  • Special events
  • Tradeshow booths
  • Museums displays
  • Theater and stage accent lighting
  • Mobile displays
  • Retail spaces

SPECIFICATIONS

Gobo Size19mm (3/4″)
Max Wattage2.8W
Input Voltage9-15VDC (12VDC nominal)
Current Draw< 230mA @ 12VDC
Power SupplyFor use with class 2 transformer or battery
Beam Angle25-40 degrees
Ingress ProtectionIP40 without way cover accessory
IP65 when using the FA30 Way Cover accessory
MaterialAnodized aluminum
LEDCree XLamp XP-G
CertificationsUL and CE
Power Connector2.1mm DC jack with screw terminal adapter for Power

DOWNLOADS

PRODUCT DETAILS
Product NameGantom iQ – Cool WhiteGantom iQ – Warm White
SKUGT31GT32
Color Temperature6500K3000K
CRI7080 typical, 90+ available by spec
Availabilitystocked product, usually ships within 1 business daystocked product, usually ships within 1 business day

OUTPUT (WARM WHITE)

DistanceCenter BeamBeam Width
 25°40°25°40°
1.0m (3.3ft)340lx (31.6fc)232lx (21.6fc)0.4m (1.3ft)0.6m (2.0ft)
2.0m (6.6ft)82lx (7.6fc)63lx (5.9fc)0.9m (3.0ft)1.3m (4.3ft)
3.0m (9.9ft)38lx (3.5fc)27lx (2.5fc)1.3m (4.3ft)2.2m (7.2ft)

OUTPUT (COOL WHITE)

DistanceCenter BeamBeam Width
 25°40°25°40°
1.0m (3.3ft)510lx (47.4fc)368lx (34.2fc)0.4m (1.3ft)0.6m (2.0ft)
2.0m (6.6ft)123lx (11.4fc)91lx (8.5fc)0.9m (3.0ft)1.3m (4.3ft)
3.0m (9.9ft)53lx (4.9fc)38lx (3.5fc)1.3m (4.3ft)2.2m (7.2ft)
 FAQ

Q: What kind of gobos can you use with the Gantom iQx?

A: Any pattern that is cut into a 19mm (3/4”) diameter disk. Traditional gobos such as stainless steel or glass will work for permanent installations. For temporary events, inexpensive full color gobos can be made from 35mm film slides or self printed onto transparency paper.

For full color film gobos visit: www.colorslide.com . It is important that you know www.colorslide.com will print your gobo designs but cannot cut them into the correct circular shape. For this we recommend purchasing a 19mm (3/4”) craft punch online or at a craft store. Please note that film slides will fade over time as the film is a photosensitive material. Although this process renders sharp full color images at a low price, these slides are
designed for temporary use. Please consider stainless steel or glass for permanent applications.

For stainless steel or glass gobos visit: www.gamonline.com or www.rosco.com .

Q: Can I print my own patterns?

A: Yes! As long as your able to create well defined patterns onto a 3/4″ (19mm) diameter disk that is less than 0.08″ (2mm) thick, it will load easily into the Gantom iQx and can render sharp patterns. You can also use a high resolution inkjet printer to create full colored patterns onto transparency paper. However, due to the resolution of typical printers and the amount of magnification with our optics, the projected pattern will not be as sharp as a professionally made pattern. Use the following sizing information
to design the images for your own custom gobos:

Gobo Specifications

Gobo Size19mm (0.75in) Ø
Max Image Size (For Patterns)15mm (0.59in) Ø
Max Image Size (For Text)10mm (0.39in) Ø

Q: How long will the Gantom iQx last?

A: Because this is an LED product, the Gantom iQx is rated for over 50,000 hours of lifetime. Stainless steel or glass gobos should last indefinitely while 35mm slides will fade over time.

Q: Can I run this from a battery for portable applications?

A: Yes, this product only uses about 3W of power and can be powered from a 9V or 12V battery for several hours depending on battery size.

Q: Can I run the Gantom iQx without DMX signal?

A: Yes, once the Gantom iQx is configured to a desired output pattern using the DMX Programmer App, it will retain that pattern in memory and automatically recall it when powered on if there is no signal input.
