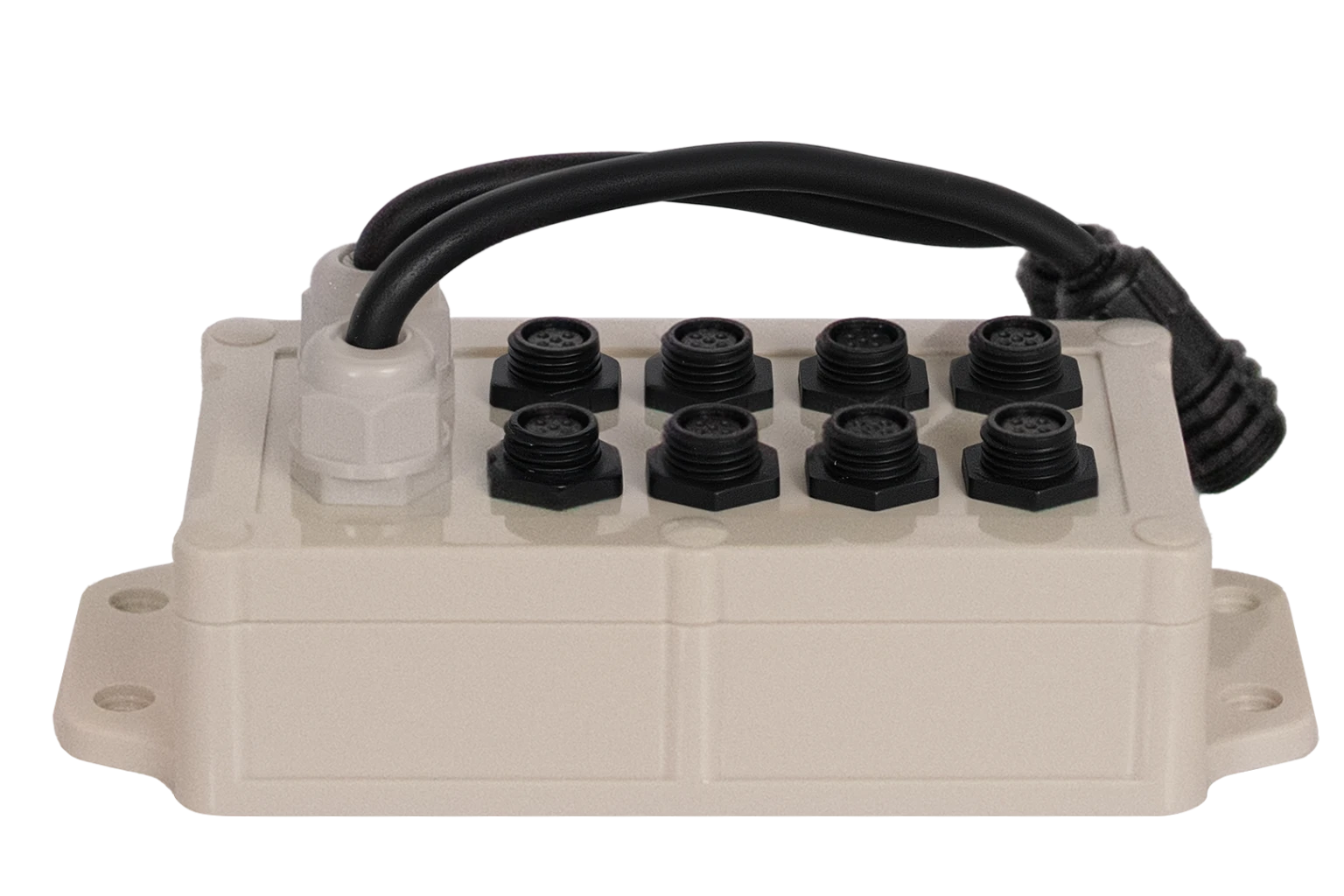

GP004 - G8 Distribution Box
Plug-and-Play Power and DMX distribution box
The GP004 model features Gantom Pro Cable Trunk connectors for DMX and Power input and thru output. This distribution box pairs perfectly with our PP36 PowerPak Plug and Play 24VDC. There is a locking panel mount connector for each of the 8 branch outputs which run to the light fixtures. Pro Cable Branch Extension Cables are available in 1m, 2m, and 5m increments so the user can modularly extend the cable run as needed (up to 30m per branch). Since the GP004 does not require access to the internal circuit board, this model has a housing which is as compact as possible in order to fit into a wide variety of space-constrained applications. CB147 Branch connector caps can be used to make this item IP65 for outdoor installation.
Product Details
Input
DC Voltage | 12-24VDC |
Rated Current | 7A TOTAL MAX |
Power and DMX Signal Input Connector | Pro Cable Trunk Male Connector |
Output
Power and DMX Signal Through Connector | Pro Cable Trunk Female Connector |
Fixture Output Connector | Pro Cable Branch Female Connector |
Number of Fixture Outputs | 8 |
Maximum Amperage on each Fixture Output | 1.0 A |
Maximum total Amperage Output | 5.0 A |
DMX Isolation | each output has an individual actively repeated DMX signal |
Physical
Dimensions | 200x94x65mm (L x W x H) |
Weight | 0.4Kg (.88lb) |
Material | ABS Plastic |
Environment
Working Temperature | -30~+55°C |
Working Environment | IP60 standard; IP65 when using CB147 cover caps; Meant for Indoor/Outdoor Installation |
Storage Temperature, Humidity | -40~+80°C ,10~99%RH |
Warranty
Power Supply Warranty | 2 years |
Compatible Accessories
CB147 | Set of 8x Pro Cable Branch Connector Caps |
PP36 | PowerPak Plug and Play 24VDC |
Compatible Cables
CB139 | 1m Branch Extension Cable |
CB130 | 2m Branch Extension Cable |
CB131 | 5m Branch Extension Cable |
